Description

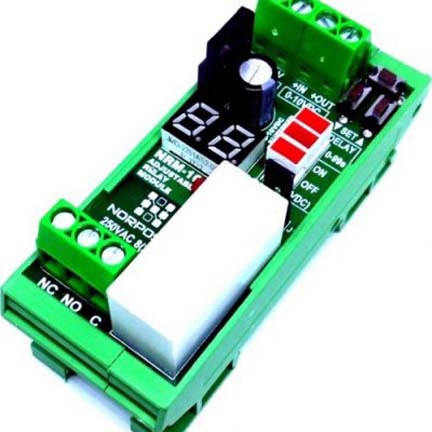

The NRM-10 is a 0-10V relay. It takes 0-10V input and turns on/off relay at user adjustable ON and OFF switch points. This relay module has digitally adjustable switch points.
Specifications
| Power Supply | 24VAC/DC |
| Input (+IN) | 0-10VDC, Rin 100KΩ |
| Buffered output (+OUT) | 0-10VDC, Iout 5mA@10VDC |
| Switch Points Range | ON (0.1-10V), OFF (0-9.9V) |
| Display Resolution | 0.0-9.9V(0.1V), ≥10V(1V) |
| Time Delay | 0-99 seconds |
| Volt-free relay output (SPCO) | 8(2)A, 250VAC |
| Dimensions | 34 x 82 x 46 (W x H x D) |
Features
- Extremely compact, fully Microprocessor controlled with seven-segment display. Input voltage and switch points are displayed on seven-segment with 0.1V resolution.
- High impedance 0-10VDC input, typ.(100KΩ) and low impedance buffered output typ.(5mA@10VDC).
- 0-99 seconds accurate time delay.
- Relay ON/OFF switch points and time delay can be adjusted accurately via push buttons.
- Volt free relay output (SPCO).
- Visual LED relay status.
- Jumper link for commissioning, ON/AUTO (OFF when link is removed).
- 24VAC/DC powered.
- Din-rail PCB Holder.
