Description

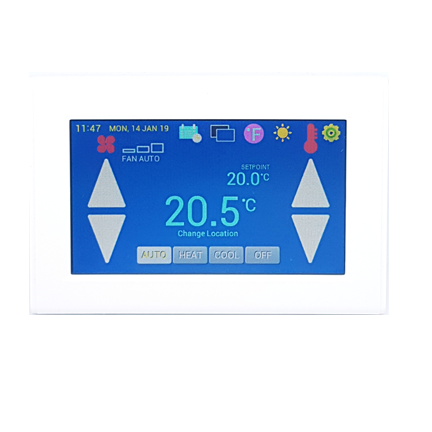

The NFC-TS4315 is a 4.3 inch Colour TFT Touchscreen, Proportional + Integral Fan Coil Controller with BACnet MS/TP connectivity up to 64 devices and supports COV subscription. The Unit has 2 NTC Sensor Inputs, 1 Universal input for remote changeover or changeover NTC Sensor, 2 Digital Inputs (Key Card/Occupancy, Window Input and hangeover Input), 5 Optically Isolated SSR (Solid State Relay) Outputs (1 x Raise Lower or 2 x PWM-ON/OFF and 3 Digital Fan Speed) and 3 Analogue 0-10VDC Outputs (1 Heating, 1 Cooling and 1 Analogue Fan Speed). The NFC-TS4315 supports both, 2 Pipe and 4 Pipe System. The Raise Lower Outputs are TPC (Time Proportional Control with adjustable valve opening time). The FCU has built-in real time clock with backup Super capacitor eliminates the use of battery. The real time clock can be synced with Computer/Server Time Clock with BACnet Time Sync Feature. This controller has BACnet Schedule Object (Read/Writeable) thus providing Schedule Programming with up to 6 Temperature Settings Per Day. The NFC-TS4315 works on 24VAC/DC and is Wall Mount with only 25MM Thickness.
Features:
- 4.3 inch Colour TFT Touchscreen
- Three Analogue outputs, one Heating output, one Cooling output and one Fan Speed
- Three Digital Inputs for Key Card/Occupancy, Window and Changeover
- Adjustable No Occupancy Derogation Time
- Programmable Occupancy/Window/Changeover contacts input NC/NO
- Three NTC 10K3A1 Sensor Inputs
- Schedule Programming with up to 6 Temperature Settings Per Day
- Sensors offset feature
- Fan Speed Selection Auto/Manual and Analog/Digital
- Programmable Fan Prop Band, Fan On Delay, Fan Start up and Fan Overrun Time
- Adjustable Analog Speed Range with programmable minimum output voltage
- 3 Stage Digital Fan Speed Output
- Full Proportional + Integral
- Separate Integral Time for Heating and Cooling allowing it to be used for Heating and Cooling with or without Integral.
- Celsius/Fahrenheit selection from Main Screen (supports BACnet Unit Celsius/Fahrenheit)
- Temperature range from -10°C to +95°C (0.5°C resolution) or 14°F to 203°F (1°F resolution)
- Adjustable Minimum and Maximum Setpoint Range
- Built-in Real Time Clock with Supercapacitor Back-up, up to 48 hours
- Adjustable Back-lit and Back-lit time out
- BACnet MS/TP Connectivity with up to 64 devices (Supports COV Subscription)
- On board EOL(120Ω Termination Resistor)
- Setup entry from Main Screen (PIN Protected)
- 24VAC/DC Power input
- Wall mount (124 x 85 x 24)
Specifications:
| Power Supply | 24VAC/DC, -15/+10% 100mA max (excluded SSRs load) |
| Temperature Range | -10°C to 95°C (0.5°C Resolution) or 14°F to 203°F (1°F Resolution) |
| Setpoint Range | -5°C to 95°C (1°C Resolution) or 23°F to 203°F (1°F Resolution) |
| Temperature Sensors | NTC 10K3A1, adjustable offset ±10°C, 0.5°C Resolution or ±20°F, 1°F Resolution |
| Integral Time (Heating & Cooling) | 0 to 500seconds |
| Proportional Band (Prop band) | 0-50°C, 1°C Resolution or 0-100°F, 2°F Resolution |
| Deadband | 0-10°C, 1°C Resolution or 0-20°F, 2°F Resolution |
| Time Proportional Control TPC(valve opening time) | 0-300seconds |
| Real Time Clock with 48 hours Capacitor Backup | Adjustable from Setup |
| Proportional Outputs (Heating, Cooling and Fan) | Digitally Calibrated 0-10VDC, 5mA per output max at 10VDC |
| Optically Isolated SSR Outputs | Solid State Relays, 30VAC/DC 1A per SSR |
