Description

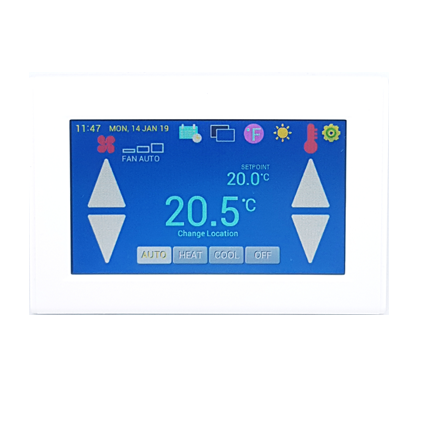

The NFC-TS4310 is a 4.3 inch Colour TFT Touchscreen, Proportional + Integral Fan Coil. The Unit has 2 NTC Sensor Inputs, 1 Universal input for remote changeover or changeover NTC Sensor, 2 Digital Inputs (Key Card/Occupancy, Window Input and Changeover Input), 5 Optically Isolated SSR (Solid State Relay) Outputs (1 x Raise Lower or 2 x PWM-ON/OFF and 3 Digital Fan Speed) and 3 Analogue 0-10VDC Outputs (1 Heating, 1 Cooling and 1 Analogue Fan Speed).
The NFC-TS4310 supports both, 2 Pipe and 4 Pipe System. The Raise Lower Outputs are TPC (Time Proportional Control with adjustable valve opening time).
The FCU has built-in real time clock with backup Super capacitor eliminates the use of battery. This controller has Schedule Programming with up to 6 Temperature Settings Per Day.
The NFC-TS4310 is Wall Mount with only 25MM Thickness.
Features:
- 4.3 inch Colour TFT Touchscreen
- Three Analogue outputs, one Heating output, one Cooling output and one Fan Speed
- Three Digital Inputs for Key Card/Occupancy, Window and Changeover
- Adjustable No Occupancy Derogation Time
- Programmable Occupancy/Window/Changeover contacts input NC/NO
- Three NTC 10K3A1 Sensor Inputs
- Schedule Programming with up to 6 Temperature Settings Per Day
- Sensors offset feature
- Fan Speed Selection Auto/Manual and Analog/Digital
- Programmable Fan Prop Band, Fan On Delay, Fan Start up and Fan Overrun Time
- Adjustable Analog Speed Range with programmable minimum output voltage
- 3 Stage Digital Fan Speed Output
- Full Proportional + Integral
- Separate Integral Time for Heating and Cooling allowing it to be used for Heating and Cooling with or without Integral.
- Celsius/Fahrenheit selection from Main Screen
- Temperature range from -10°C to +95°C (0.5°C resolution) or 14°F to 203°F (1°F resolution)
- Adjustable Minimum and Maximum Setpoint Range
- Built-in Real Time Clock with Supercapacitor Back-up, up to 48 hours
- Adjustable Back-lit and Back-lit time out
- Setup entry from Main Screen (PIN Protected)
- 24VAC/DC Power input
- Wall mount (124 x 85 x 24)
