NXT-48-24 Extension Timer

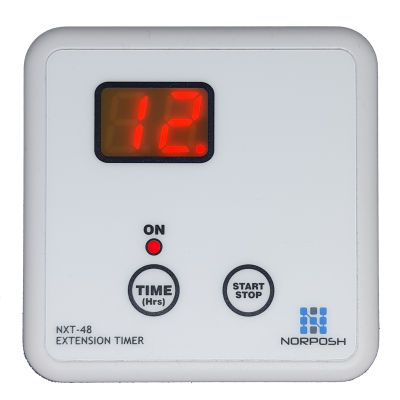

The NXT-48-24 Extension Timeris a fully Microprocessor based Extension Timer. Two seven-segment displays are used to display set time or remaining time. Multiple ranges of timer can be selected via rotary dip switch. Two push buttons provided, are used to set time and start/stop the timer respectively. A volt-free ‘HOLD’ input is available to hold the timer externally. Both versions available, 24VAC/DC and 230VAC. The 230V version is transformer based, therefore provides isolation from mains.
Specifications
| Power Supply | 24VAC/DC |
| Power Consumption | 2VA Max |
| Time Range (Hours) selectable via rotary dip switch | 0-3, 0-5, 0-6, 0-7, 0-10, 0-12, 0-18, 0-20, 0-24, 0-48 |
| Timer HOLD input | Volt-free (close contacts to hold) |
| Volt-free relay output (SPNO) | 6(1)A, 250VAC |
| Dimensions | 86 x 86 x 26 (W x H x D) |
Features
- 1 to 48 Hours Extension Timer. Range is user selectable via 10 position Rotary DIP Switch.
- Fully Microprocessor controlled with seven-segment display and two push buttons.
- Blinking Display Indication when Timer stops automatically.
- Timer Hold Terminal (Volt-free input).
- Volt-free relay output (SPNO).
- Visual LED relay status.
- 24VAC/DC or 230VAC Power input.
- Wall mount Enclosure.
